Purdue Performance Stage 3 TD04 BSB For Abarth 500/595/695 and Grande Punto

Purdue Performance Stage 3 TD04 BSB Turbo Kit

The ultimate upgrade for serious T-Jet performance.

The new and improved Purdue Performance Stage 3 Turbo Kit delivers exceptional power and reliability. Designed for enthusiasts aiming to push their T-Jet engine to its full potential, this kit offers safe, consistent performance at 280+ BHP, with the capability to reach 300-350 BHP when paired with supporting modifications.

Turbocharger Specifications

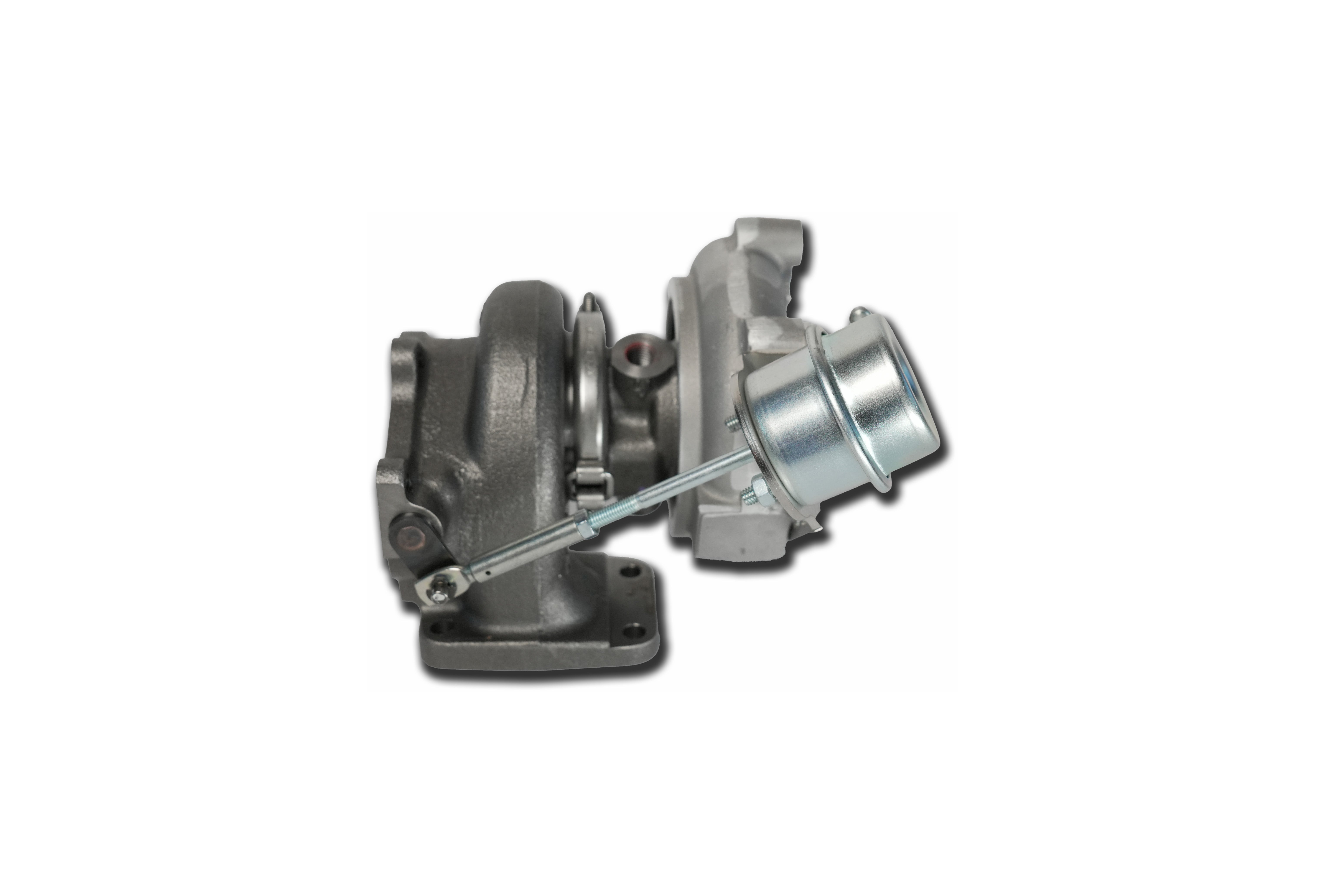

• 0.6 Bar wastegate actuator for electronic boost control

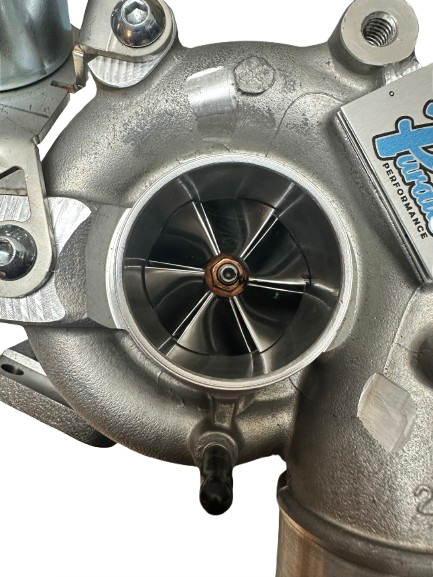

• Avional impeller with 6+6 oversized blades for maximum airflow

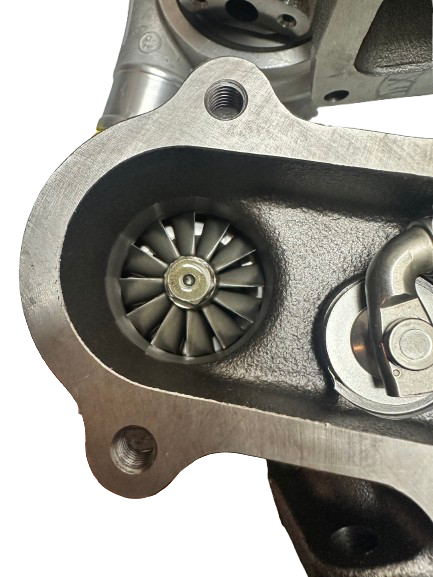

• HL-derived discharge impeller with an enlarged shaft for improved strength and response

• Turned venturi intake design to minimize turbulence and optimize efficiency

• Enlarged wastegate port for smoother boost management

Note: ECU remap and 99-octane fuel are required for optimal and safe operation.

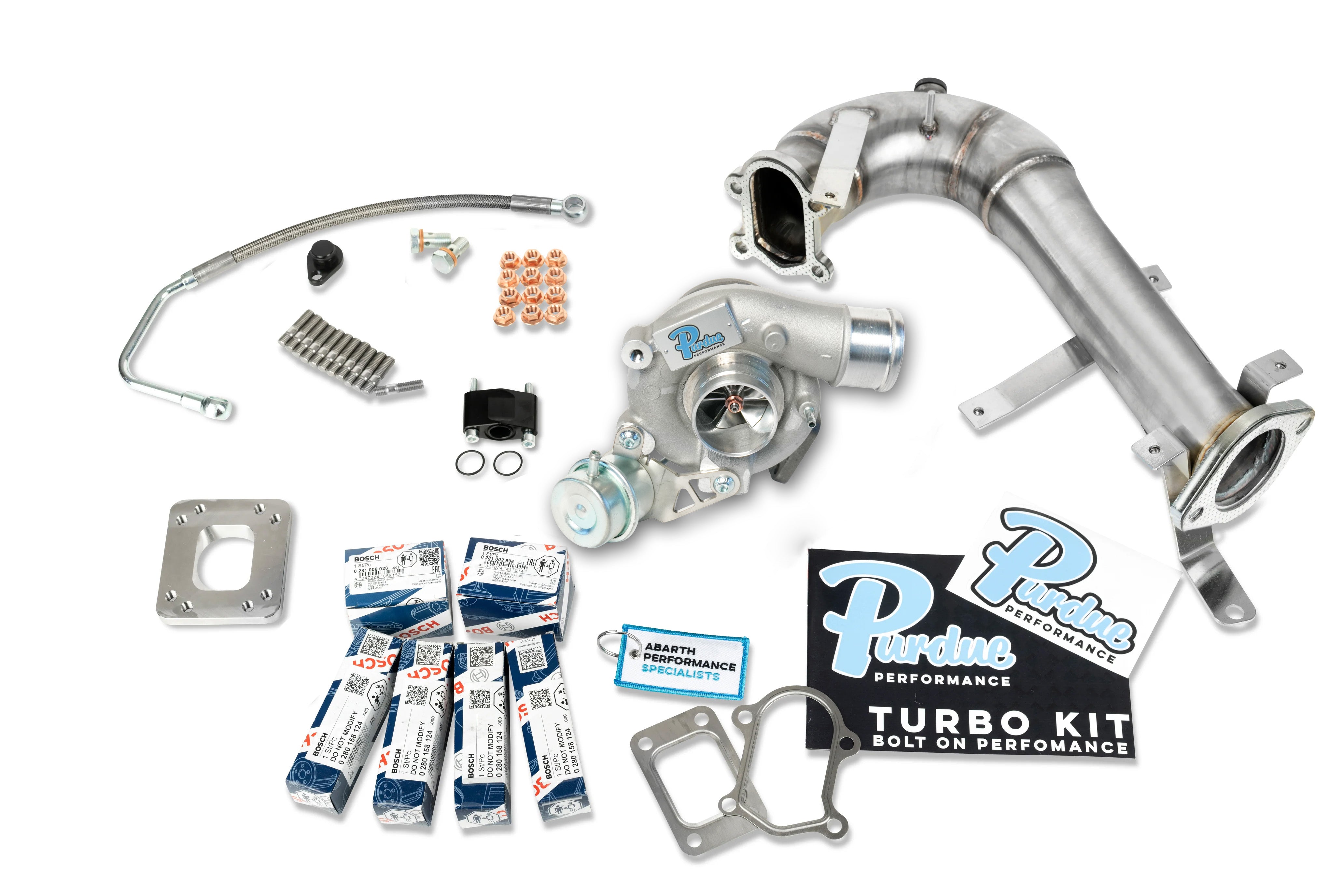

 Kit Includes

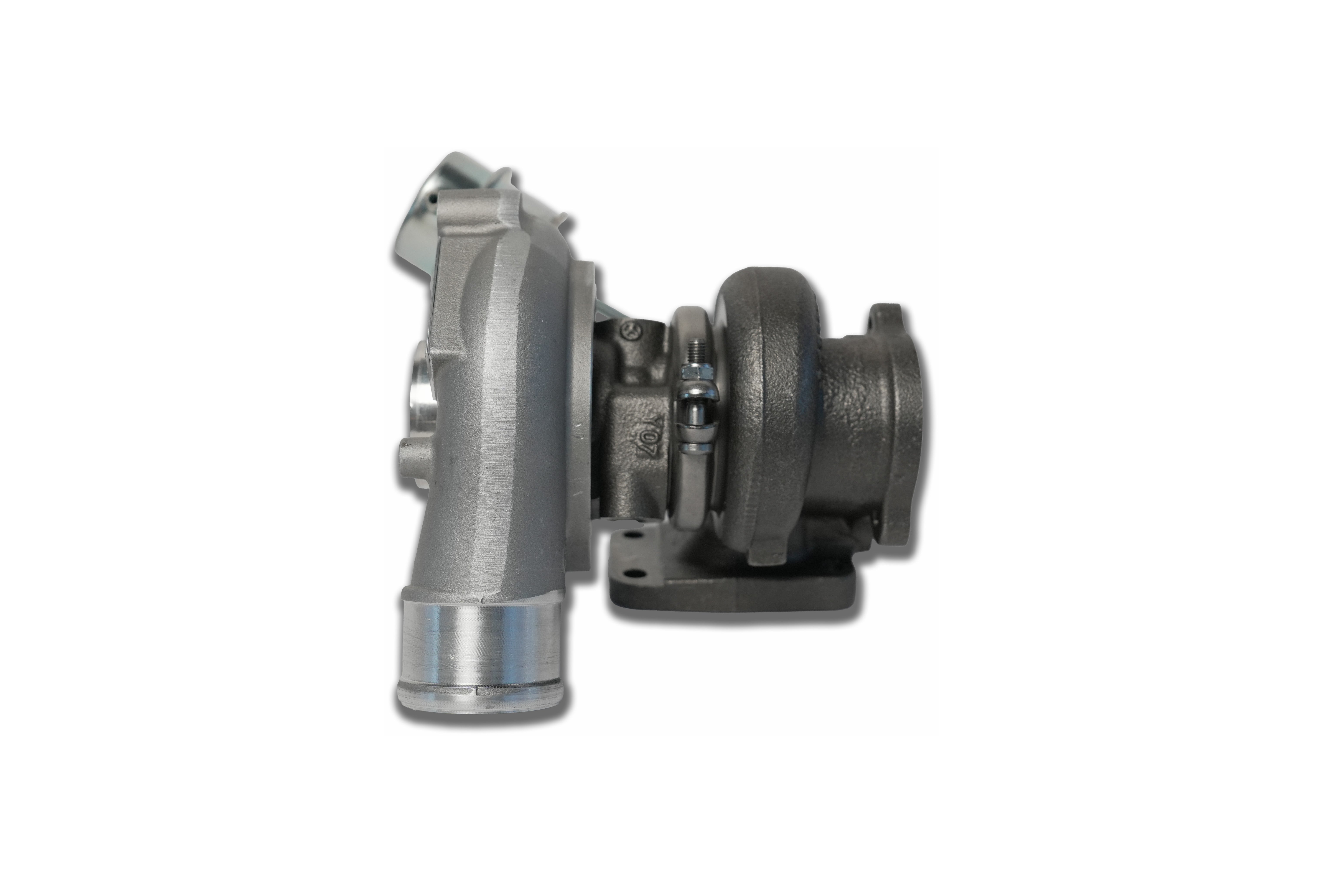

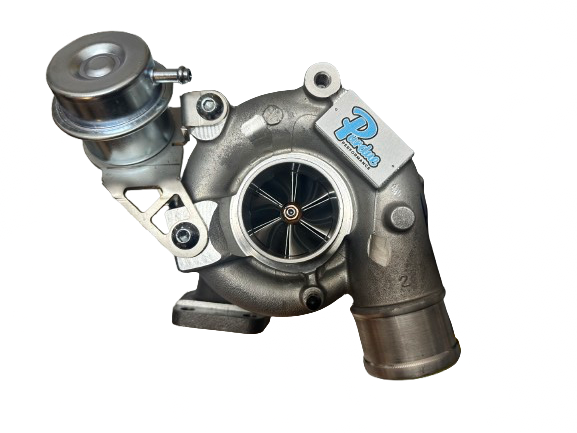

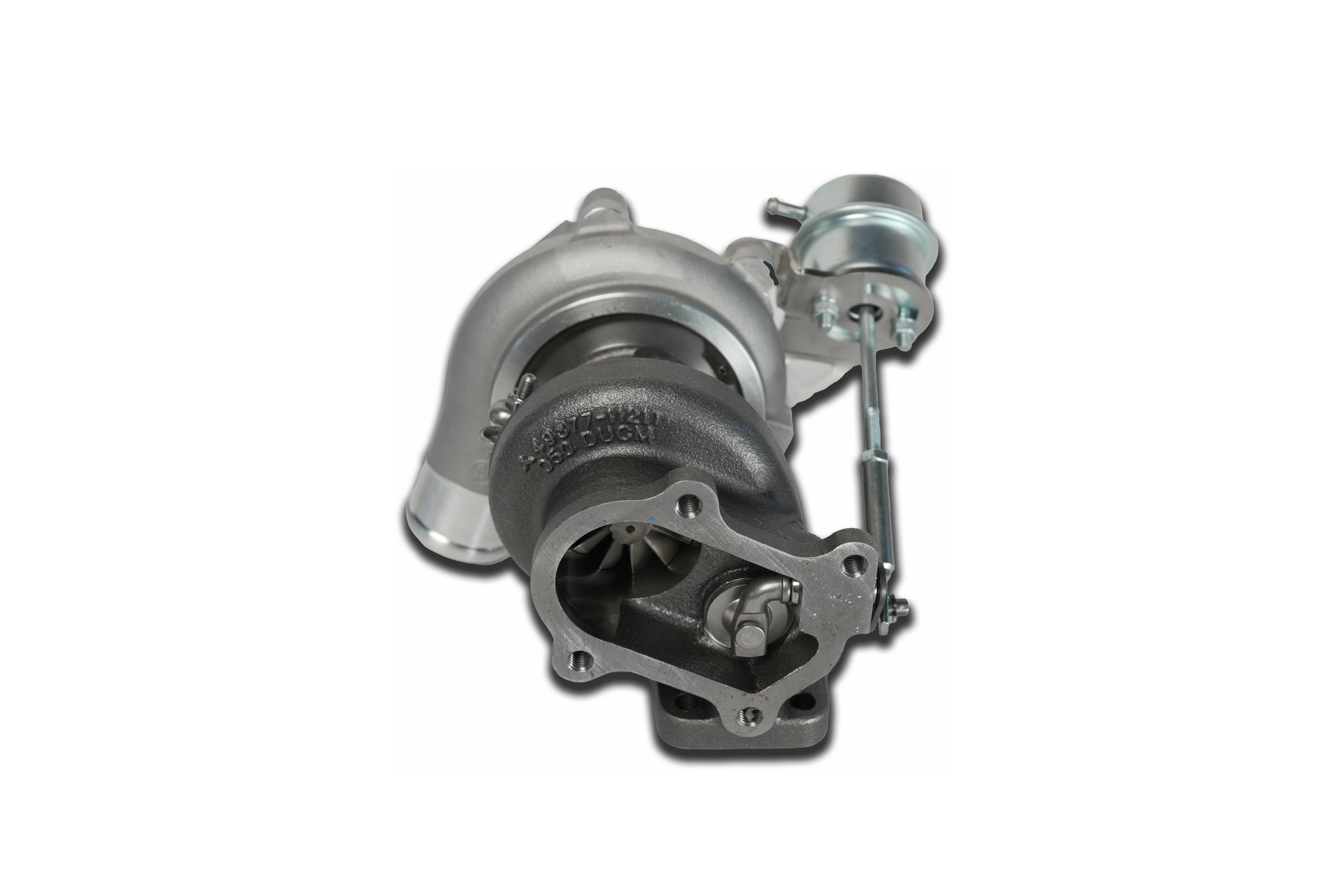

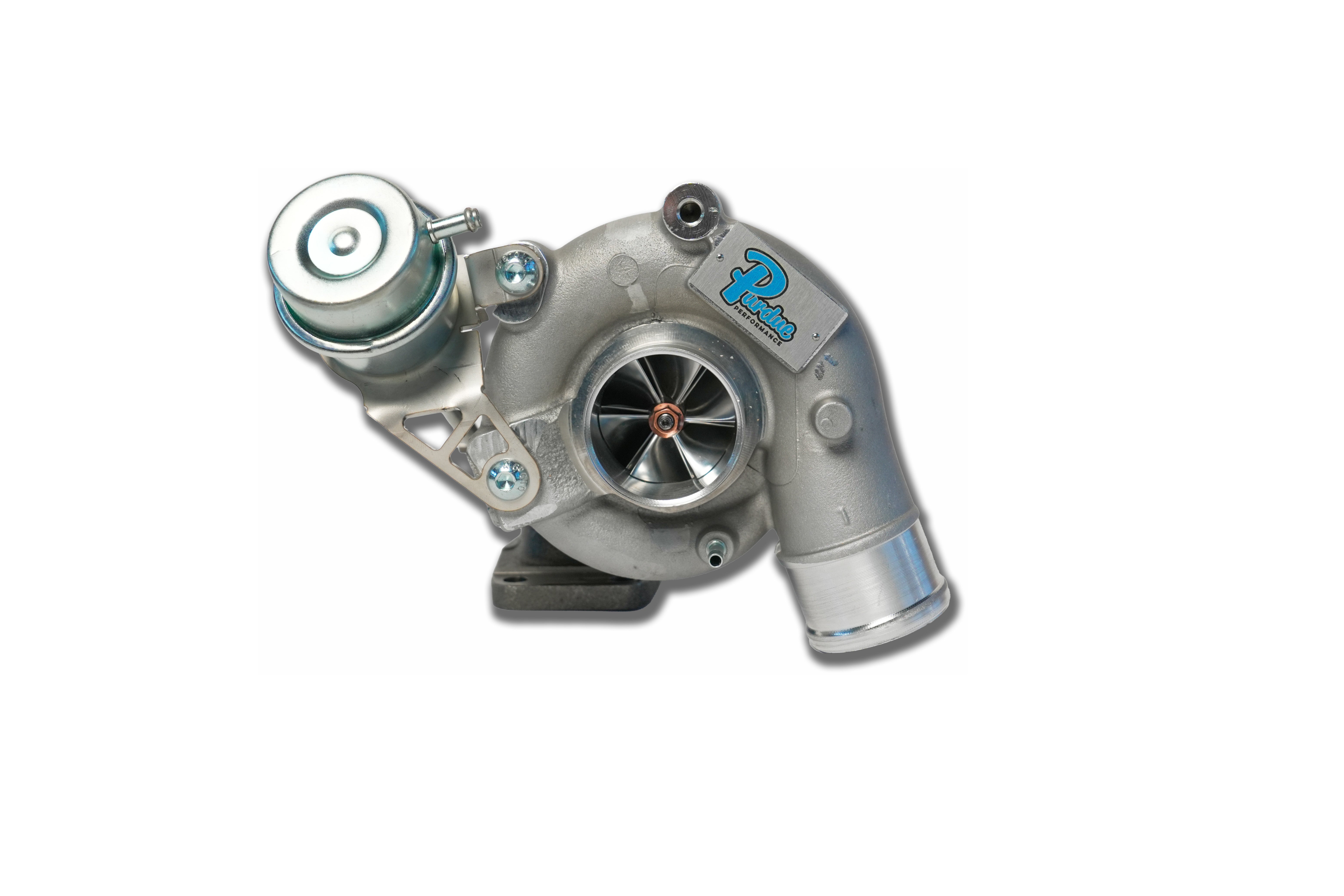

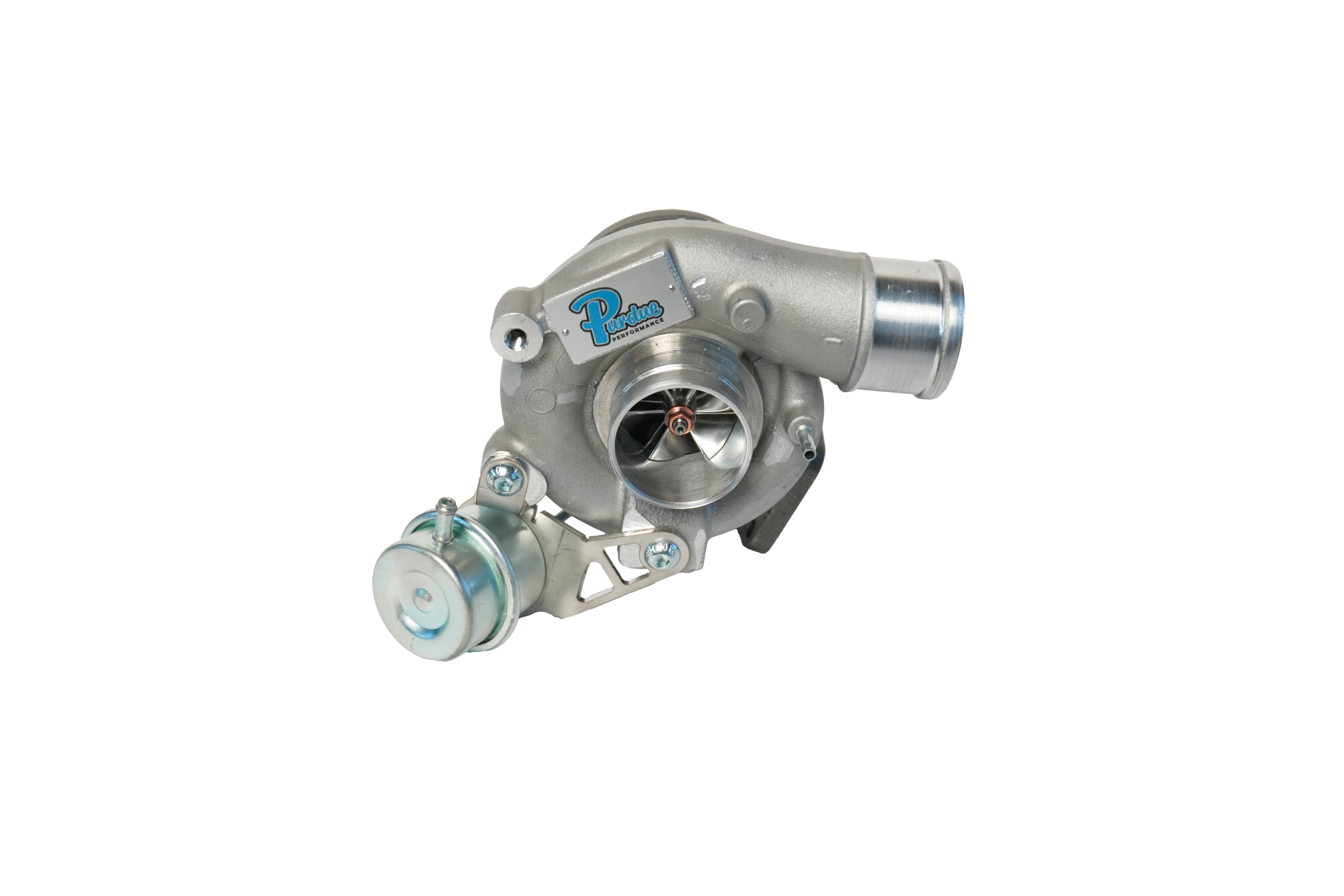

• TD04 BSB Turbo with 6+6 Avional Impeller

• 0.6 Bar Actuator

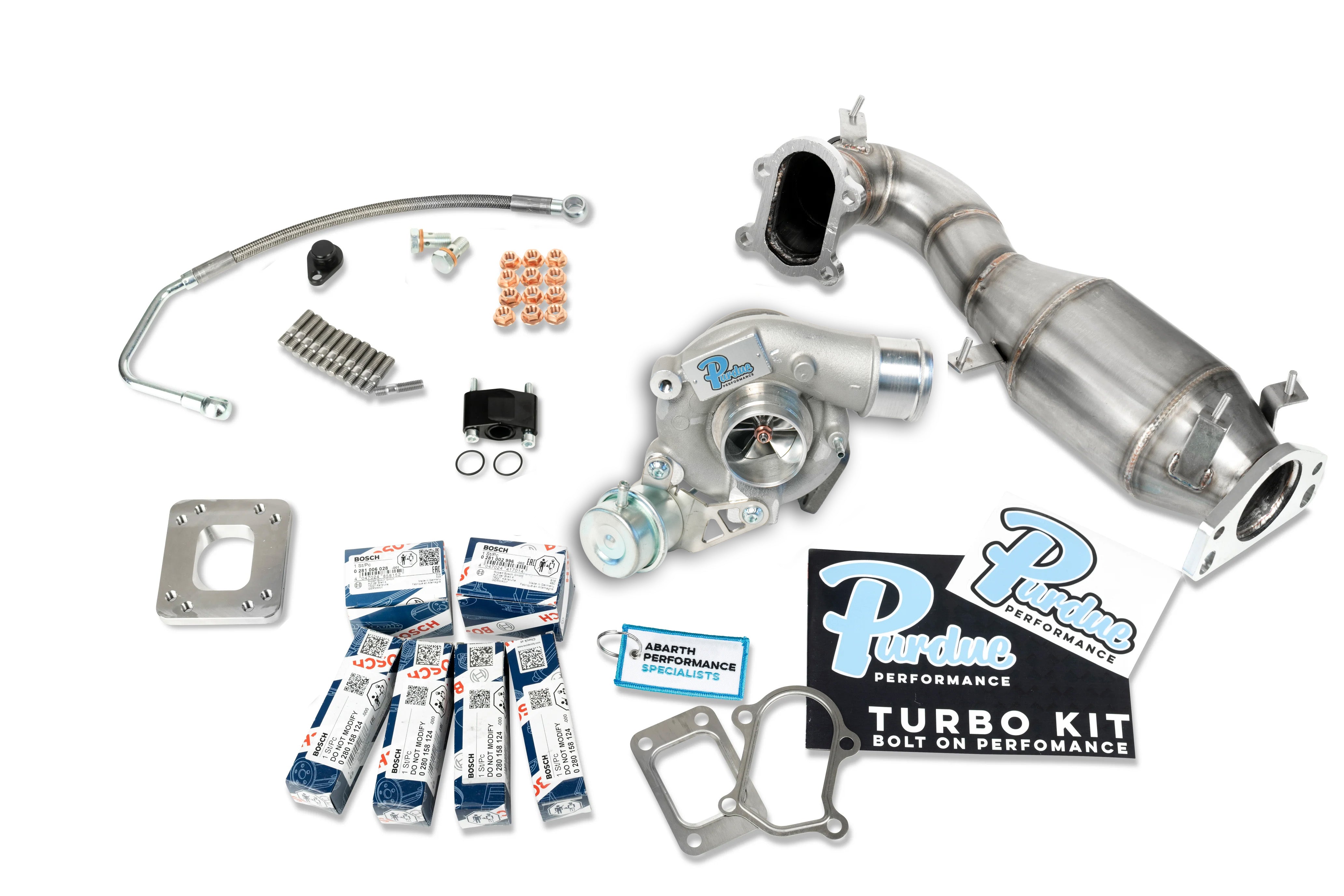

• De-Cat Downpipe (Sports Cat available on request)

• Oil Feed and Return Lines

• All flanges, nuts, bolts, and fittings required for installation

• Oil spacer, mounting hardware, and gaskets

• All screws and clamps necessary for a complete fit

Optional Upgrades

• Bosch 630cc Injectors

• Bosch 3-Bar Boost and MAP Sensors

⚠️ All models except the 180 BHP version require uprated sensors.
A uprated Pierburg valve is required for Series 4 Abarth models.

Important Notes

• The De-Cat Downpipe is for track use only — it will not pass MOT emissions testing.


• Each kit is made to order — please allow 2–3 weeks for delivery.



  Recommended Supporting Modifications for 300+ BHP

  To achieve maximum performance potential from the Stage 3 Turbo Kit, we recommend the following upgrades:

  • Purdue Performance Fast Road or Corsa Racing Camshaft (SKU: PPFRCS1 & PPCRCS1)

  • Front Mount Intercooler (high-flow, large core design)

  • Purdue Performance Low Air Intake System (SKU PPLDAI-1)

  • Tubular Exhaust Manifold

  • 2.5” Full Exhaust System (turbo-back configuration)

  • Bonalume Dump Valve for improved boost response and reliability (SKU: BOVES1)
