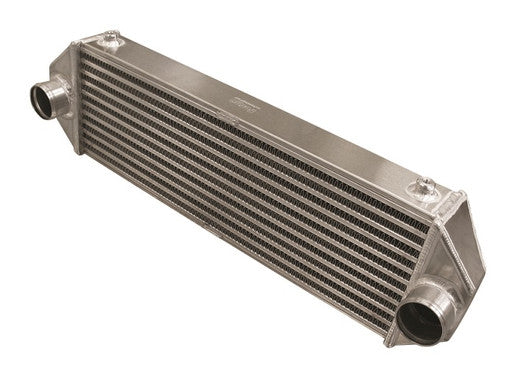

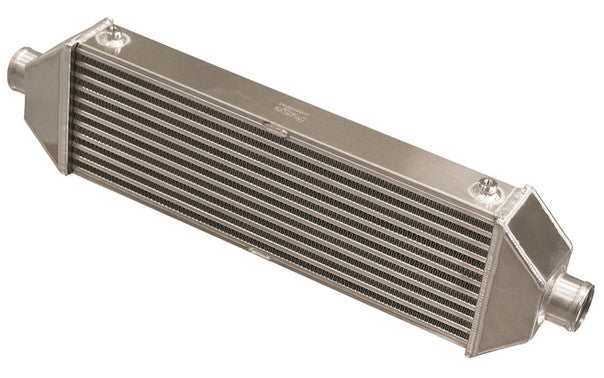

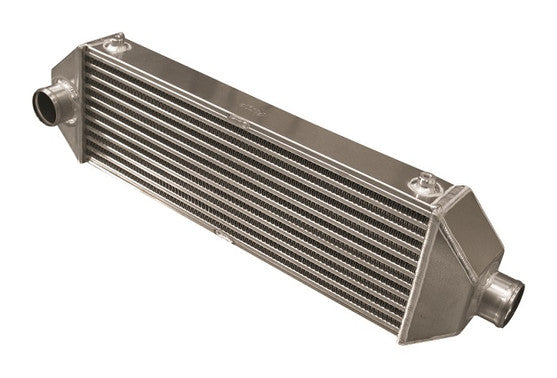

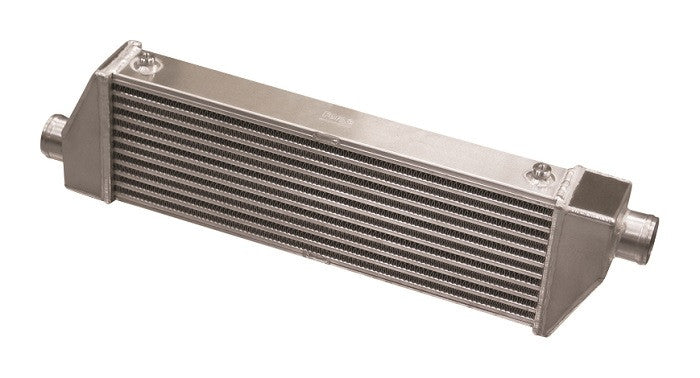

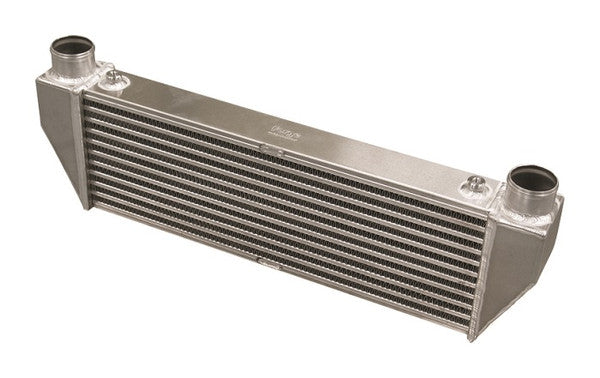

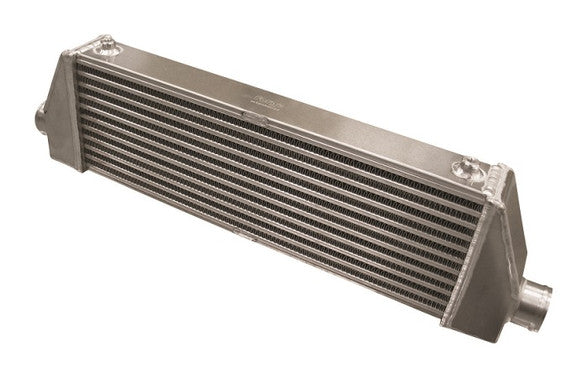

Universal Forge Motorsport Alloy Intercooler

Universal 100 Series Alloy Intercoolers - 60mm Core Forced induction (compression of inlet air) produces heat. Heat can reduce power thus negating some of the benefits of forced induction in the first place.

Incorporating an intercooler between the compressor and the plenum chamber greatly reduces the adverse effects of elevated air inlet temperatures.

Forge Motorsport's range of universal intercoolers begin with efficient cores sized to fit many forced induction applications. From there, a wide selection of end tank configurations offer numerous installation solutions.

Using the highest quality cores, hand fabricated and welded by highly skilled craftsmen, our intercoolers offer excellent thermal properties, flow characteristics, minimal pressure drop and high volumetric efficiency. We cannot advise if these intercoolers will fit your vehicle.

For most applications we need to produce vehicle specific kits, rather than using Universal products. However for vehicles that are not covered in our range or where the vehicle is non-standard our Universal range can provide the perfect solution.

A good starting point is to determine the physical space available to mount an intercooler and use the dimension tables to ascertain what will fit. Then looking at the type variants (position of the connecting tubes, and diameter, on the intercooler) decide how the hoses need to be routed and connect. Also consider how the intercooler will be secured or mounted. In nearly all cases, when utilising a Universal intercooler, the installer will require a suitable level of technical ability.

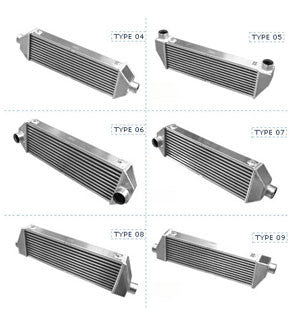

Core Dimensions - L x W x H mm (in) Overall Dimensions L x W x H mm (in) Type 04 500 x 60 x 175 (19.69 x 2.37 x 6.89) 680 x 80 x 200 Type 05 500 x 60 x 175 (19.69 x 2.37 x 6.89) 650 x 80 x 223 Type 06 500 x 60 x 175 (19.69 x 2.37 x 6.89) 650 x 115 x 200 Type 07 500 x 60 x 175 (19.69 x 2.37 x 6.89) 665 x 115 x 200 Type 08 500 x 60 x 175 (19.69 x 2.37 x 6.89) 680 x 80 x 200 Type 09 500 x 60 x 175 (19.69 x 2.37 x 6.89) 680 x 80 x 200

PLEASE NOTE: PIPE DIAMETER IS THE OUTSIDE DIAMETER OF THE PIPE
